Today I discovered another surprise motionbilder throws at you when working with heavy scenes.

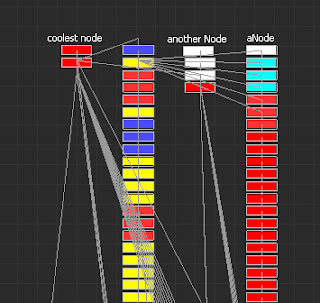

In the schematic view all nodes can be spread all over the place, in fact so far or near to each other that you are getting display errors and the graph will start flickering.

Thankfully you can script the position of these node positions. The solution was to write a quick script to reorder them based on the hierarchy. I hope this will help others struggling with this problem as well.





Here is the script to do this.

import pyfbsdk as fb

evilnodes = []

for each in fb.FBSystem().Scene.Components:
 if getattr(each, 'SetSchematicPosition', None):
  evilnodes.append(each)


def sort_by_hierarchy(nodes):
 tree = {}
 sort_by_hierarchy_recursive(tree, None, nodes)
 return tree

def sort_by_hierarchy_recursive(tree, parent, nodes):
 # find children
 children  = [n for n in nodes if n.Parent == parent]

 # build a subtree for each child
 for child in children:
  # start new subtree
  tree[child.Name] = {}

  # call recursively to build a subtree for current node
  sort_by_hierarchy_recursive(tree[child.Name], child, nodes)


sortedEvilNodes = sort_by_hierarchy(evilnodes)

iteratorX = 0
iteratorY = 0

for each in xrange(0,len(evilnodes)):
 if evilnodes[each].Name in sortedEvilNodes:
  iteratorX += 100
  iteratorY = 0
 else:
  iteratorY += 20
 evilnodes[each].SetSchematicPosition(iteratorX, iteratorY)
And yes in case you are bored out of your mind you can also arrange them in a circle. Just change line 30-39 to this.
x = 0
y = 0
radius = 300
substeps = 64
for each in xrange(0,len(evilnodes)):
    x = int((radius * math.cos((math.pi/substeps)*each)))
    y = int((radius * math.sin((math.pi/substeps)*each)))
    evilnodes[each].SetSchematicPosition(x, y)
